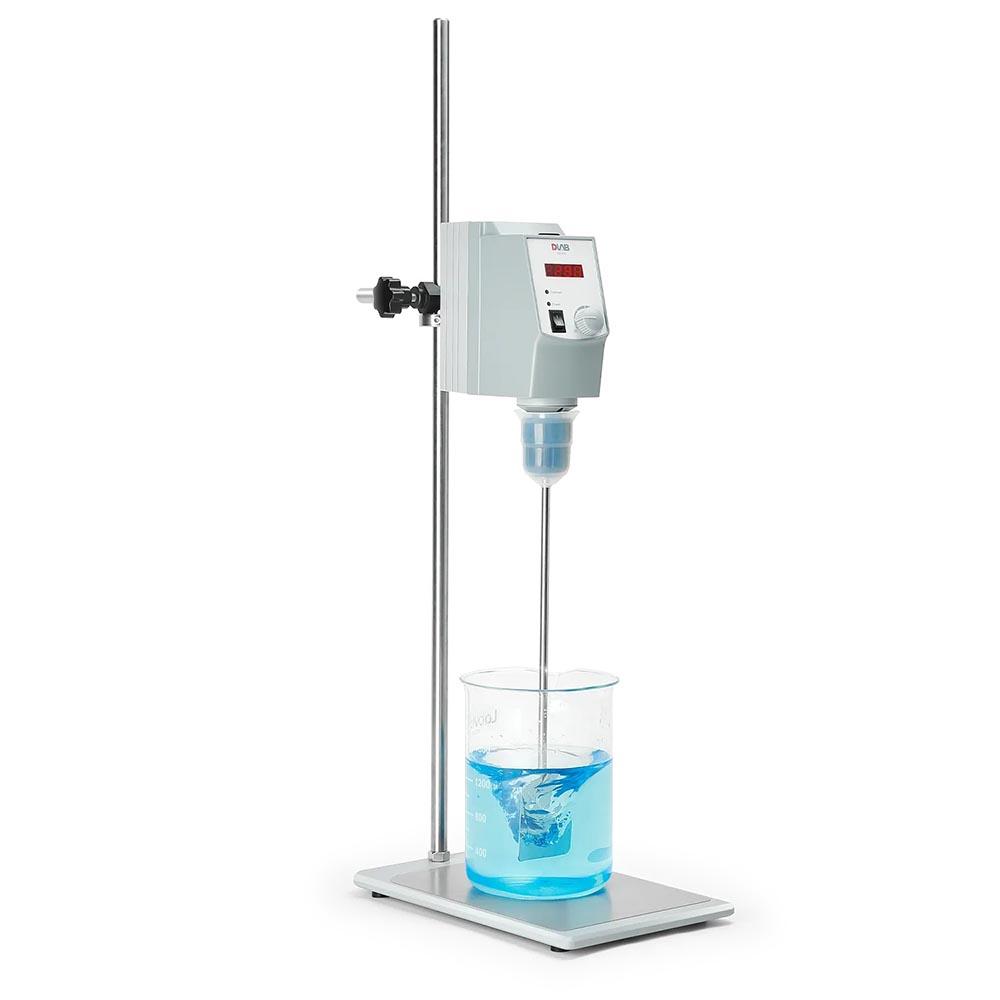

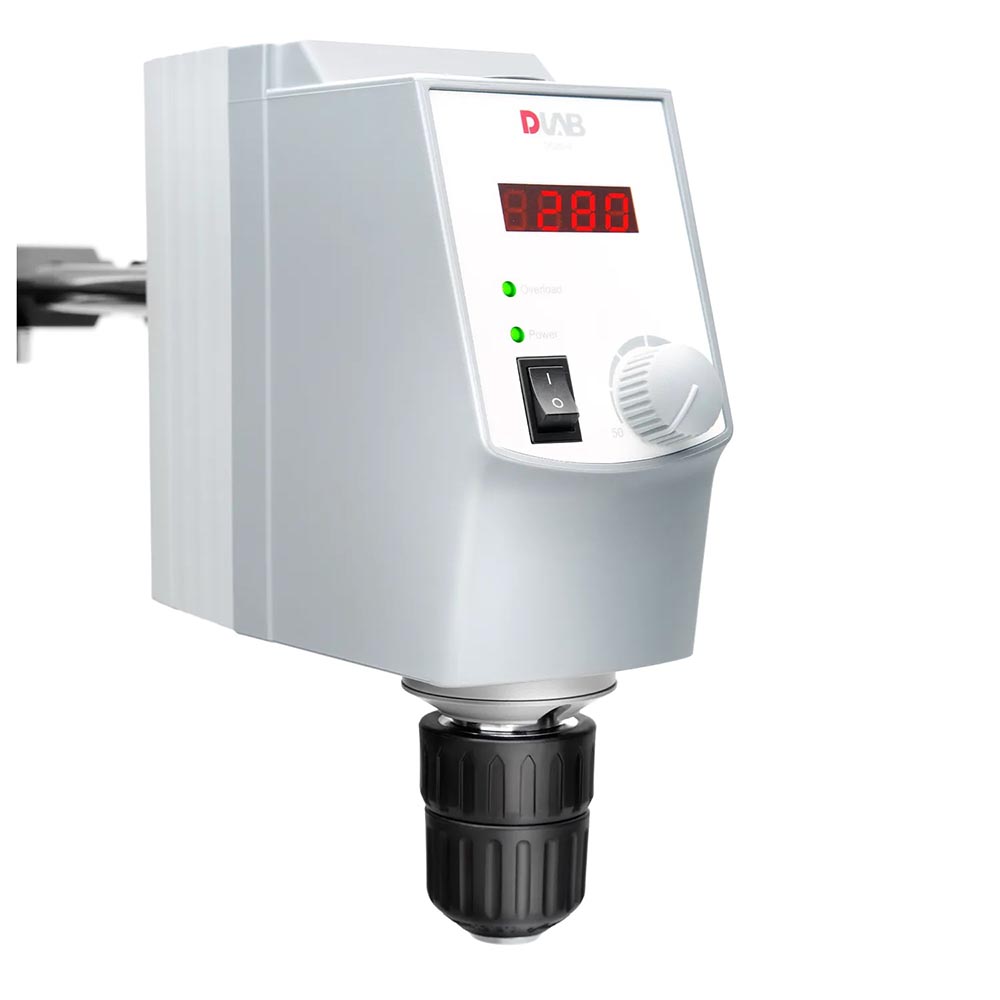

DLAB Overhead Stirrer with LED Digital Display
Have questions?
Talk to Customer Service.
M-F: 9am-5pm
DLAB Overhead Dgital Stirrer
| Model | Max. Stirring Qty | Max. Torque | Viscosity Max. | Motor Input Power | Motor Output Power | Power |
| OS20-S | 20 L [H2O] | 40 N x cm | 10000 mPa x s | 60 W | 50 W | 70 W |
| OS40-S | 40 L [H2O] | 60 N x cm | 50000 mPa x s | 120 W | 100 W | 130 W |
Description
OS20-S LED Overhead Stirrer; High reliability and outstanding performance, Wide range of speed from 50 to 2200rpm, Brushless DC motor for long life, maintenance free and explosion proof, LED screen for monitoring actual speed, Safety circuits allow for safe stop function in anti-stall or overload conditions, Large chuck diameter for many shaft types…
Technical Specifications
- Speed range: 50-2200 rpm
- Motor type: Brushless DC motor
- Speed display: LED
- Overload protection display: LED
- Chuck clamp range diameter: 0.5-10 mm
- Protection class: IP21
- Voltage,Frequency: 100-240V, 50/60Hz
- Dimension[WxHxD]: 83 x 220 x 186 mm
- Weight: 2.8 kg
- Permissible ambient temperature: 5-40 ℃
- Permissible ambient humidity: 80% RH
DLAB Overhead Dgital Stirrer
| Model | Max. Stirring Qty | Max. Torque | Viscosity Max. | Motor Input Power | Motor Output Power | Power |
| OS20-S | 20 L [H2O] | 40 N x cm | 10000 mPa x s | 60 W | 50 W | 70 W |
| OS40-S | 40 L [H2O] | 60 N x cm | 50000 mPa x s | 120 W | 100 W | 130 W |
