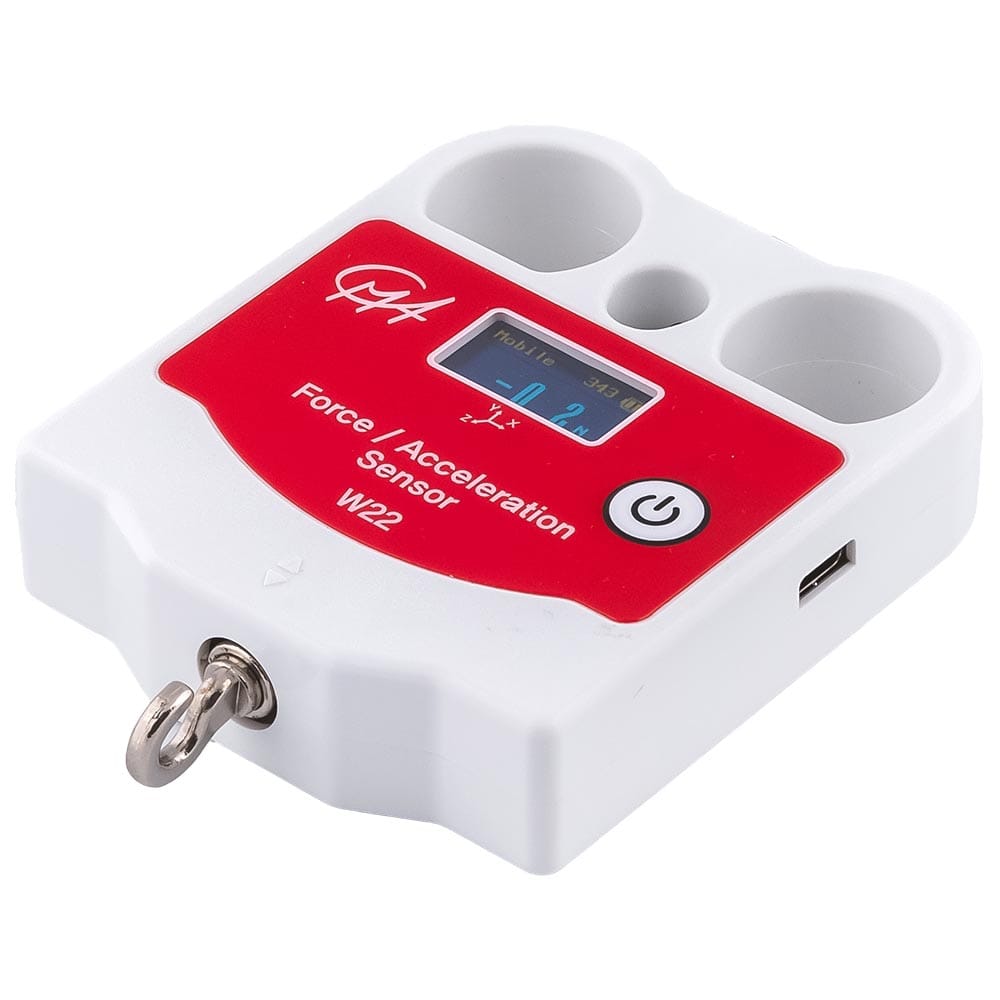

The Wireless Force/Acceleration sensor W22 simultaneously measures force and acceleration without the inconvenience of wires. The sensor measures force in the range between -80 and 80 N and acceleration along 3 axes x, y, and z, in the range between -16 .. 16 g.

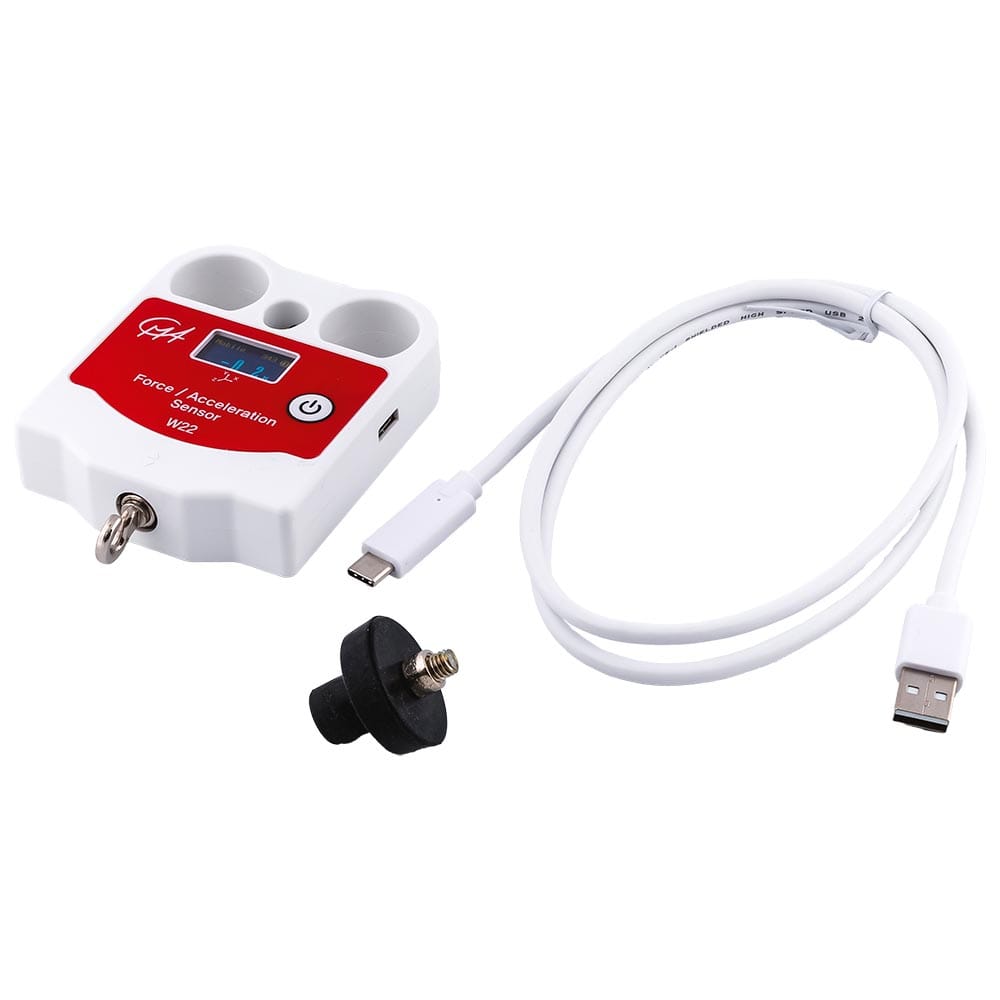

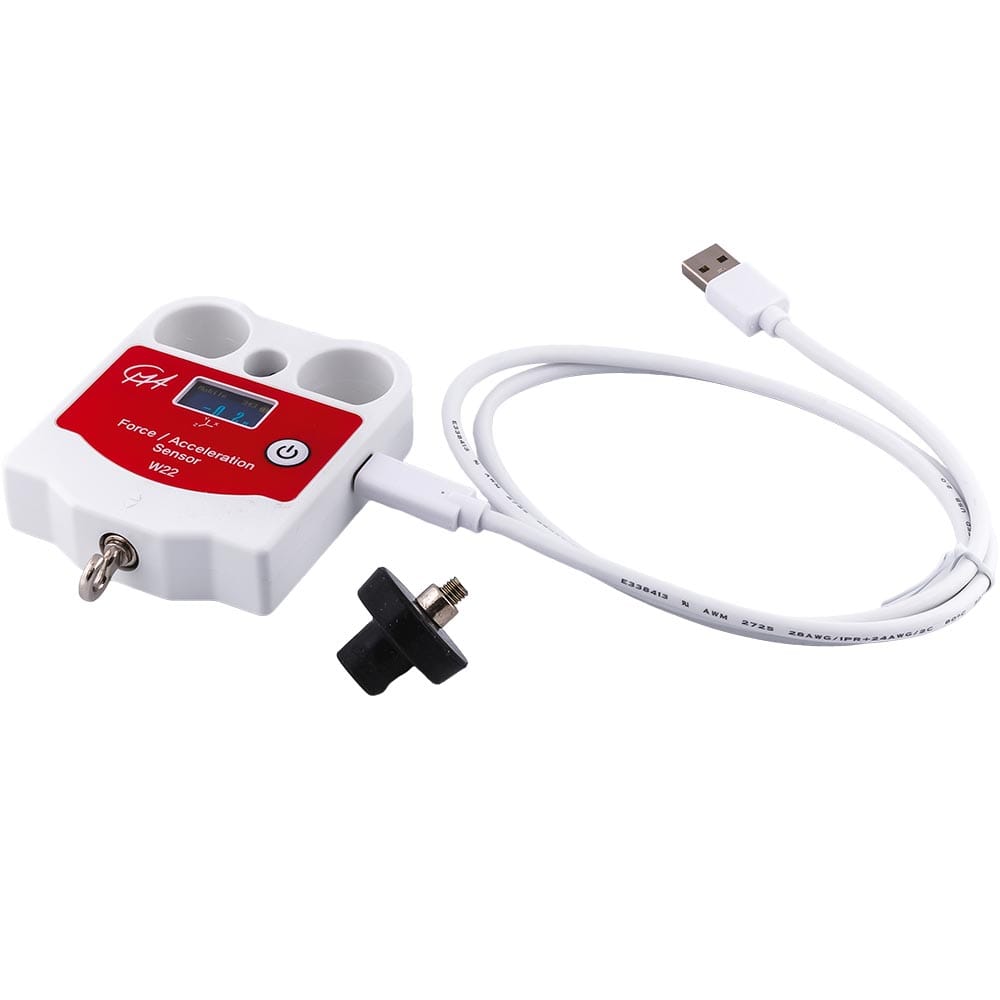

The sensor can be used wirelessly via Bluetooth or wired via USB.

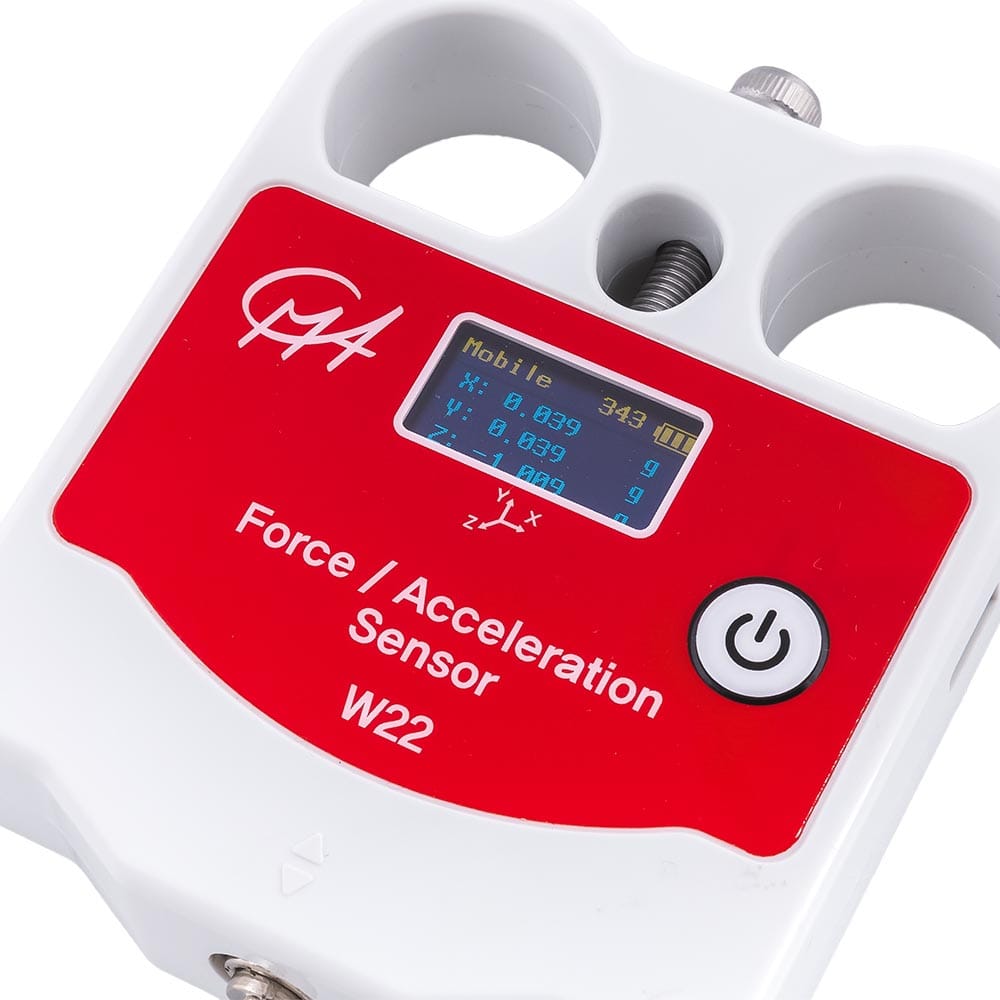

The sensor is equipped with an OLED color display which shows some sensor information and the measured by the sensor values. This makes the sensor suitable to use as an independent measuring instrument.

The sensor can be used wirelessly via Bluetooth or wired via USB with the Coach or Coach Lite programs/apps on computers (Windows and Mac), Chromebooks and mobile devices (Android and iOS).

Technical Specifications

• Force Measuring Ranges: – 80 … 80 N
• Acceleration Measuring Ranges: -16 … 16 g in three directions x, y and z
• Resolution Force: 0.012 N
• Resolution Acceleration: 0.0004 g
• Accuracy: Typical ± 0.5% of full scale at 25 °C
• Maximum Force: 100 N (for forces above this value the sensor can be damaged permanently)
• Warrantee: 24 months
• OLED display: 0.96” 128 x 64 px
• Maximal sampling rate: Bluetooth: 100 Hz, USB: 1000 Hz
• Battery life: 12h when full (rechargeable)
• Connection: Bluetooth 5, Low Energy (Mac, Android, iOS) Bluetooth 2.1, Classic (Windows) or USB-C 2.0

All specifications of the sensor are described it its User guide.

Suggested Experiments

• The Force sensor can be used for:
  • Measuring of forces and impulses during collisions,
  • Studying simple harmonic motion,
  • Measuring of centripetal or frictional forces,
  • Studying Hook\’s law,
  • Studying Newton\’s second law.
• The 3-Axis Acceleration sensor can be used to study, e.g.:
  • Dynamic cart motions and collisions,
  • Pendulum motion,
  • Tilting of an object,
  • Acceleration of elevators, remote-controlled cars, bicycles, or automobiles.
