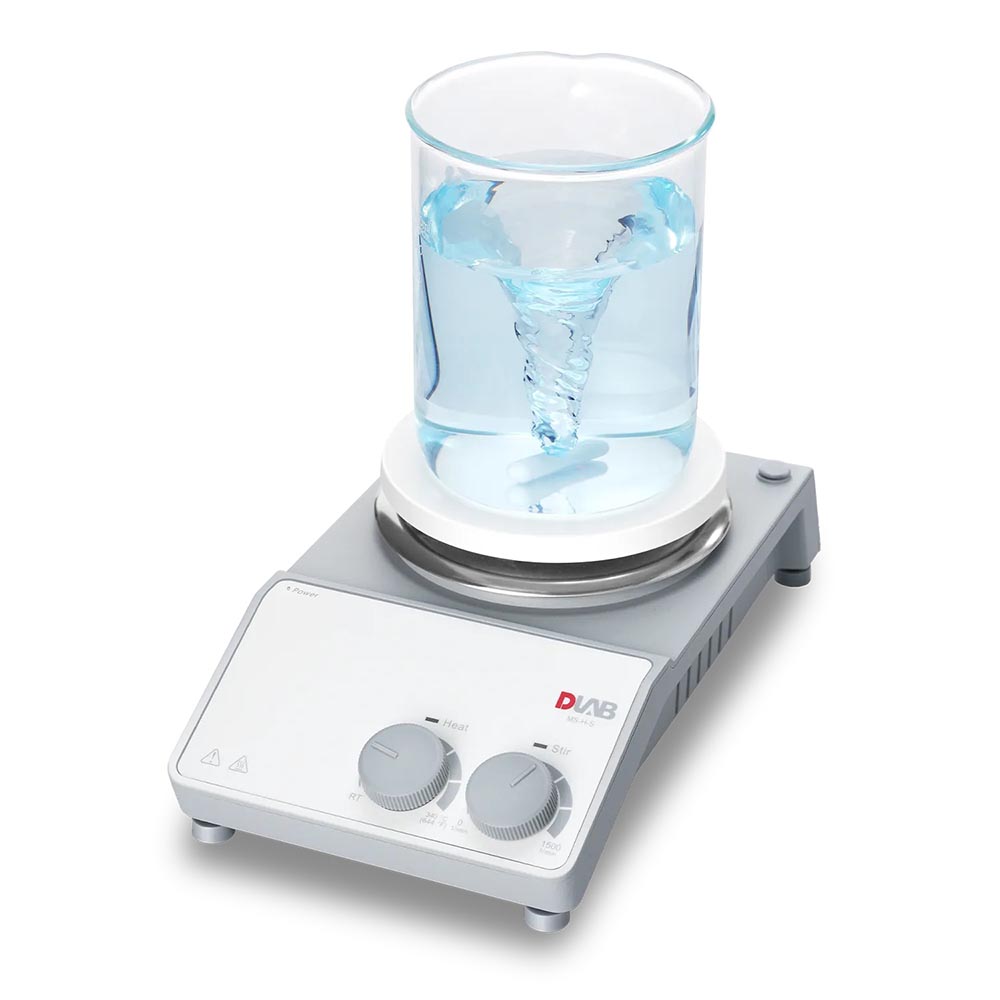

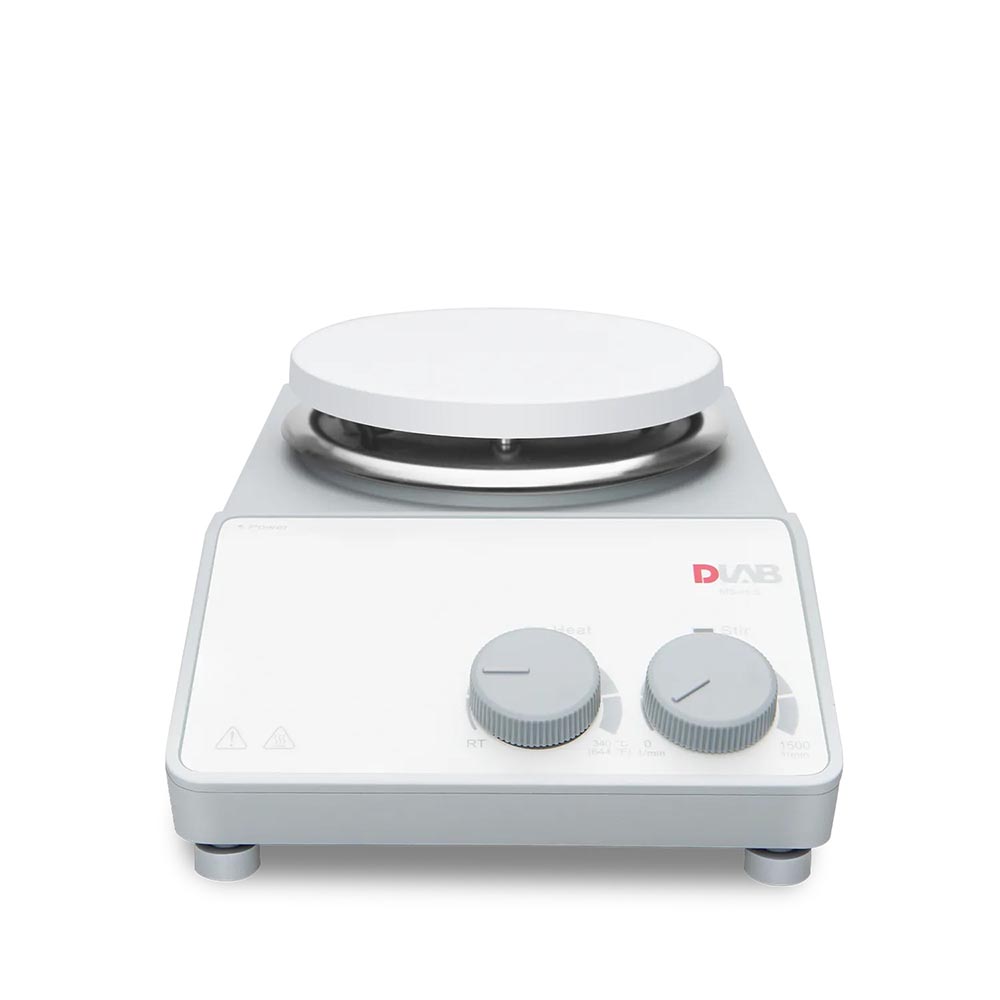

Brushless DC motor is maintenance free and explosion-proof, Analog temperature control up to 340°C, Analog speed control up to 1500 rpm, Maximum stirring quantity of H2O is 20L, Safety circuits provide overheating protection”HOT” warning flashes if plate temperature is above 50°C even when hotplate is turned off, Work plate with ceramic coating provides good chemical-resistantperformance, Wide variety of accessories available to choose.

Product Parameters

• SKU: MS-H-S
• Work plate Dimension: Ø135 mm（5 inch
• Work plate material: Stainless steel cover with ceramic coating
• Max. stirring quantity [H2O]: 20L
• Speed range: 0-1500 rpm
• Speed display: Scale
• Temperature display: Scale
• Heating temperature range: Room Temp. / 340 ℃
• Temperature control accuracy: –
• Temperature display accuracy: –
• External temperature sensor: –
• “Hot” warning: –
• Overheating temperature protection: 420 ℃
• Motor type: Brushless DC motor
• Stirring positions: 1
• Max. magnetic bar length: 80 mm
• Data connector: –
• Timer function: –
• Protection class: IP21
• Motor rating output: 10W
• Power: 530W
• Heating output: 500W
• Voltage,Frequency: 100-120V/200-240V，50/60Hz
• Dimension [WxDxH]: 160x280x100 mm
• Weight: 2.8 kg
• Permissible ambient temperature: 5-40 ℃
• Permissible ambient humidity: 80% RH
